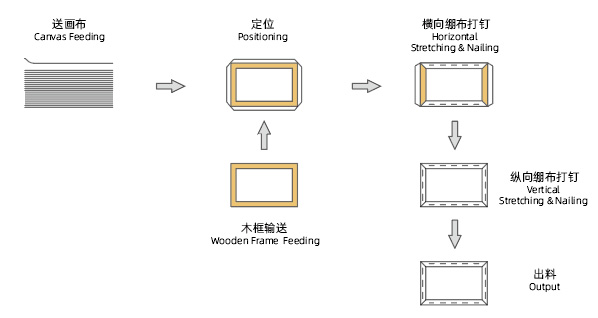

The BK-500/800 Automatic Frame Stretching Machine is designed for canvas frame production, featuring automatic feeding, visual robotic positioning, gripper stretching and efficient nailing, with a speed of 8-12 pieces per minute. Equipped with internationally renowned components such as Trio motion controllers (UK), Inovance servo motors, Estun robotic arms, and a high-precision vision system, the machine ensures smooth fabric surfaces, accurate positioning, and stable operation. it supports quick switching between multiple frame sizes, offers easy operation, and boosts efficiency by 5-10 times compared to manual work, The BK-500/800 machine helps reduce labor costs, improve product yield, and is the ideal choice for cultural product manufacturers seeking high-efficiency production.
Trio Motion Controller (UK)
Inovance Servo Motor
Pepperl+Fuchs Ultrasonic Sensor
Airtac Pneumatic Actuators
Airtac Anti-rust Linear Guide
ORION Vacuum Pump
NSK Motion Unit
Estun Robot Arm
Daheng Camera & Lens
Schneider Electric Components
Dongji Nailer
| Model | BK-500 | BK-800 | |
| Ma×imum Size | mm | 420×520 | 620×820 |
| Minimum Size | mm | 200×200 | 200×200 |
| Wooden Frame Thickness | mm | 15-30 | 15-30 |
| Ma×imum Speed | Pieces/min | 8-12 | 8-10 |
| Power Supply | kw | 17.5 | 19 |
| Dimension (L×W×H) | mm | 5000×4000×1700 | 6500×5000×1700 |
| Machine Weight | kg | 4500 | 5500 |
