QZFM-700/1000A

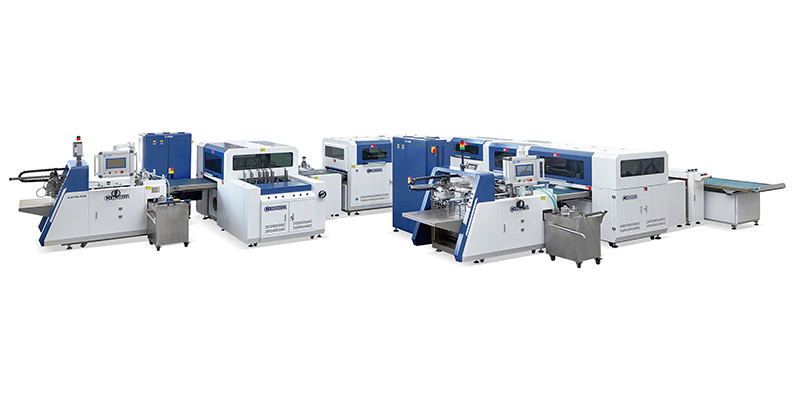

Automatic Case Making & inner Laminating Machine

QZFM-700/1000A Automatic Case Making & lnner Laminating Machine is fully-automatic producion line, which can finish four-side folding and inner paper laminating at one time, filing the market gap of multifunctional case maker. lt's a machine with high quality, high accuracy, high speed and low labor during production.lt can be applied for high volume packaging material production of moon cake, tea cellphone, underear, handicraft products, cosmetics, folder, calendar, hard cover books and so on.

Compare

Inquire Now

Watch
The Video

Automatic Case Making & inner Laminating Machine

Process Flow

Technical Parameters

Model		QZFM-700A	QZFM-1000A
Maximum size	mm	450×700	600×1050
Minimum size	mm	100×200	140×240
Paper weight	g	100-200	100-200
Board thickness	mm	1.0-3.0	1.0-3.0
Boards amount	Pieces	1-6	1-6
Speed	Pieces/min	15-25	15-25
Positioning accuracy	mm	±0.2	±0.2
Power supply	kw	30	34
Weight	kg	6500	9000
Dimension	mm	12000×6200×1850	15000×7900×1900

System Features

Paper Feeder

The first enterprise in the industry to adopt professional feeder which is dedicated to printing machinet makes adjustment convenient and fast, productionin high speed, performance stable and reliable.

Gluing Unit

Paper conveying structure with automatic constant temperature heating function to prevent roller sticking paper caused by watervaper.

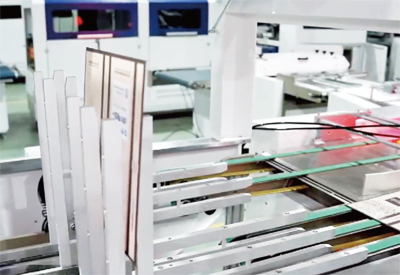

Board Feeding System

Cardboard feeding mechanism applies japanese Panasonic servo system, which is not only high precision, fast, but also reliable.Enhanced the board changing efficiency with the reasonable and humanized design.

Production Line Turning Mechanism

It perfectly connects the case making machine and inner paper laminating machine together, the finished hardcover get delivered to inner laminating machine through the overturning unit it helps with stable and efficient output, and decreases the la bor cost greatly.

Platform-based Folding System

The mechanical edge folding technology is to complete the four-side foldingin one plane, which reduces the scratches and make the product nice and artistic.

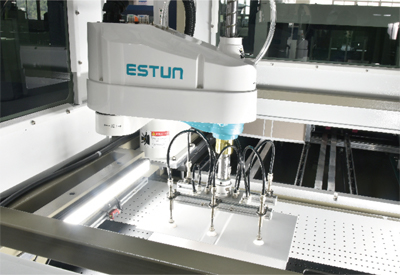

Visual Positioning System

Adopts high precision camera for accurate positioning, manipulator to feed board with rapid speed.
